High-Performance Replacement Engine
Power your garden machinery with this high-performance 9HP 270cc Petrol Engine with Electric Start, designed to deliver a strong balance of power, reliability and ease of use.
This engine is the ideal step up from smaller 7HP units while offering a more compact alternative to larger 15HP engines. Fitted to the powerful Titan Pro TP800 Petrol Wood Chipper, this engine provides enough performance to handle chipping branches up to 100mm in diameter, demonstrating its impressive capability.
Titan Pro Tech Tip: Initial Oil Fill & Keyway Set
This utility engine is shipped completely dry of lubricants due to carrier safety restrictions. Before trying to start the unit, add exactly 0.95L of premium 10W-30 small-engine oil through the fill neck; the built-in low oil alert system will automatically block the ignition ground spark if filled incorrectly. When mounting your output transmission assembly to the 25mm crankshaft drive journal, verify that your parallel steel key sits entirely flat in the keyway channel to eliminate rotational stress on the shaft assembly.
The integrated electric start system makes starting your machine quick and convenient, eliminating the need for repeated pull-starting and making operation easier.
Built for demanding garden machinery applications, this robust engine is suitable for a range of equipment where reliable power and easy starting are essential.
Key Features:
• Powerful 9HP 270cc four-stroke petrol engine
• Electric start system for quick and convenient starting
• Ideal power upgrade from smaller 7HP engines
• More compact alternative to larger 15HP engine options
• Powers the Titan Pro TP800 Petrol Wood Chipper
• Suitable for heavy-duty garden machinery applications
• Reliable performance for demanding workloads
• Designed for long-lasting durability and dependable operation
Turnkey Starting
Features an onboard electric key startup system that activates the starter solenoid immediately, reducing operator fatigue.

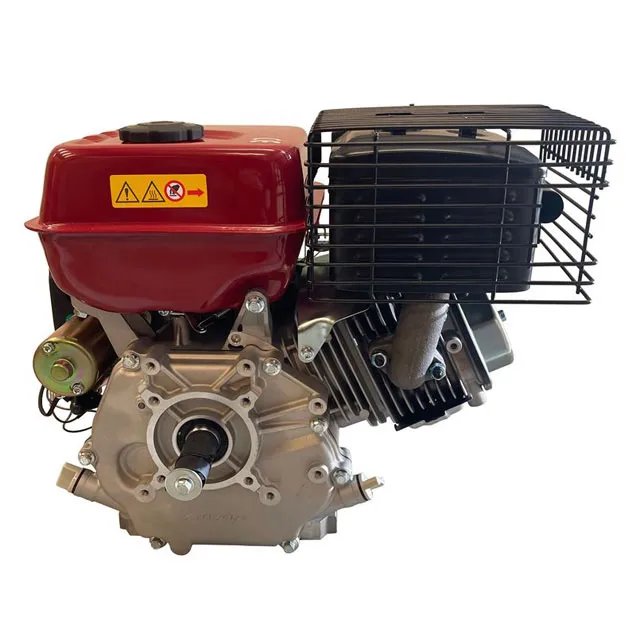

25mm Output Shaft
Machined with a heavy utility straight 25mm crankshaft drive bore with an 8*30 internal thread layout for direct transmission linkage.
100mm Processing
Delivers high rotational torque margins, providing ample cutting force for TP800 chippers tackling branches up to 100mm.
Fulfillment Notice: The £15.99 delivery charge applies to mainland England postcodes only. For other locations, please message our support team at
sales@titan-pro.co.uk with your full delivery address for a tailored courier shipping quote.
Specifications
| Technical Specifications |
| Engine Brand / Model |
Ducar 270cc Easy To Start Series |
| Engine Configuration |
4-Stroke OHV Single Cylinder Petrol Engine |
| Total Displacement |
270cc (9 Horsepower Class) |
| Output Crankshaft Diameter |
25mm (0.984") Straight Keyed Shaft |
| Crankshaft Internal Thread Size |
8 * 30 |
| Cylinder Bore & Stroke |
77mm x 58mm (3.03" x 2.28") |
| Crankcase Oil Capacity |
0.95 Litre (Approx. 0.25 Gallon) |
| Spark Plug Gap Specification |
0.7mm - 0.8mm |
| Spark Plug Installation Torque |
18 - 22 N.m. |
| Intake Valve Tappet Clearance |
0.08mm - 0.12mm (0.003" - 0.005") |
| Exhaust Valve Tappet Clearance |
0.13mm - 0.18mm (0.005" - 0.007") |
| Target Machine Suitability |
Titan Pro TP800 Wood Chipper / Universal Machinery Assembly |
| Boxed Package Dimensions |
55cm x 44cm x 46cm |
| Gross Boxed Weight |
29.25kg |
| Condition Status |
New |
