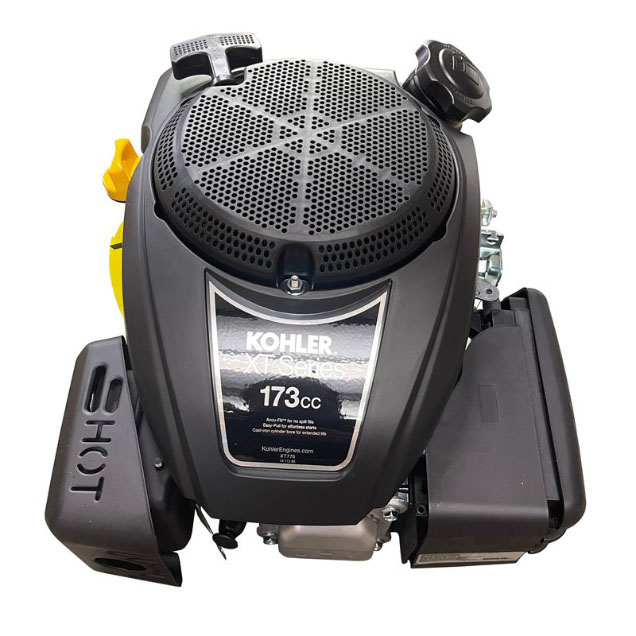

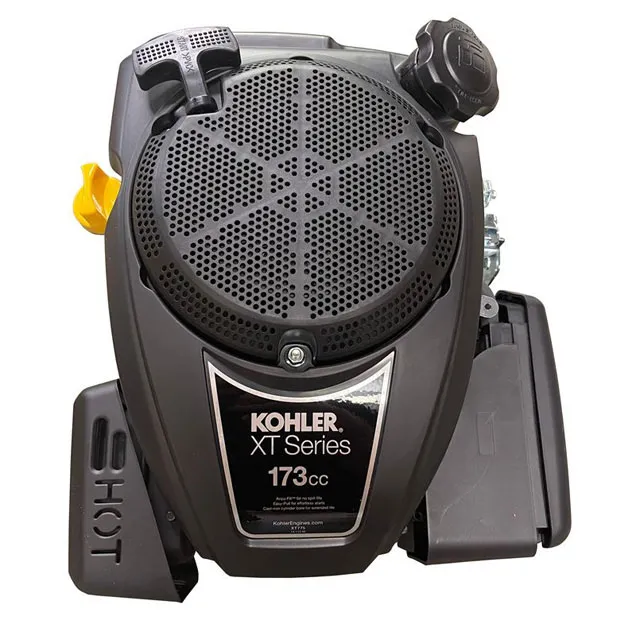

Genuine OEM Kohler Complete Engine
Power your equipment with confidence using the genuine Kohler XT775 3024 Petrol Engine. Delivering 7.75 gross torque, this premium engine is trusted for its outstanding reliability, smooth performance and easy starting. It powers the Titan Pro 22" Zero-Turn Petrol Lawnmower, making it an ideal replacement engine or power unit for a wide range of compatible applications.
Featuring Kohler's innovative engine technologies, the XT775 is designed to provide dependable performance, effortless starting and consistent power, even in demanding conditions.
Whether you're replacing an existing engine or sourcing a high-quality power unit for another project, the Kohler XT775 3024 offers the durability and performance expected from one of the world's leading engine manufacturers.
Titan Pro Tech Tip: Engine Swap & Initial Setup
Complete replacement engines are shipped dry without oil for transit safety. Before initial start-up, fill the crankcase with 0.6 Litres of SAE 30 or 10W-30 4-stroke engine oil and verify the level on the dipstick. When bolting the engine to the mower deck chassis, torque all mounting bolts evenly to prevent deck flex and check crankshaft keyway alignment before reattaching the blade boss. Always fill with fresh, unleaded petrol (E5/E10) to keep the Smart-Choke system operating cleanly.
Key Features:
• Genuine Kohler XT775 3024 Petrol Engine
• 7.75 Gross Torque output
• Powers the Titan Pro 22" Zero-Turn Petrol Lawnmower
• Smart-Choke™ Technology – no priming or manual choke required for easy starting
• Easy-Pull™ Technology – reduces pull effort for effortless starting
• Accu-Fill® Fuel Tank – angled filler neck helps reduce spills during refuelling
• Consistent-Cut™ Technology – maintains engine speed for improved cutting performance in demanding conditions
• Lightweight, compact design
• Suitable for replacement or alternative compatible applications
Smart-Choke™ System
Automatic choke management eliminates manual choking or priming—just pull the recoil cord for effortless starting.
Consistent-Cut™ Power
Maintains engine RPM through thick or wet grass to deliver uniform cutting torque and clean deck discharge.
Free UK Delivery
This genuine standalone Kohler XT775 3024 engine includes fast, free palletized delivery directly to all standard UK postcodes.
Please note: Replacement engines are shipped dry without oil in heavy-duty reinforced cartons to protect engine shafts and controls during tracked delivery.
Specifications
| Technical Specifications |
| Engine Model |
Kohler XT775 (3024 Model Variant) |
| Engine Type |
Four-Cycle, Single-Cylinder, Air-Cooled, Vertical Shaft, Petrol, OHV with Cast Iron Cylinder Sleeve |
| Displacement |
173cc (10.6 cu in) |
| Gross Torque (SAE J1940) |
7.75 ft-lbs |
| Net Torque (SAE J1995) |
7.46 ft-lbs (10.11 Nm) @ 2800 RPM |
| Bore x Stroke |
70mm x 45mm (2.7 in x 1.8 in) |
| Compression Ratio |
8.5:1 |
| Oil Capacity |
0.6 Litres (0.6 U.S. Quarts) |
| Lubrication System |
Splash Lubrication |
| Dry Weight |
12.2 kg (26.9 lbs) |
| Overall Dimensions (L x W x H) |
50cm x 41cm x 40cm |
| Condition Status |
New |
| Delivery Cost |
Free (All UK Postcodes) |
